Why we chose Design 2:

​​

  • The overall layout is straightforward and easy to understand, promoting clarity in both function and construction.

  • The driving idea behind the project provides a clear narrative and design intention.

  • Movement throughout the space is logical and well-organized, supporting user experience and accessibility.

  • The use of geometric forms and spatial proportions enhances structural order and conceptual cohesion.

​

What we had to change:

​

  • Refined Facade Composition

    The previously continuous glass façade is being reduced and reorganized into smaller window groupings. This variation introduces better visual rhythm while improving privacy, energy control, and material balance across the elevations.

    ​

  • Residential Reorientation

    Apartments will be repositioned toward the west side of the building, facing the property buffer line. This enhances privacy, optimizes views, and helps create a softer edge condition between residential units and adjacent site boundaries as well as a better view with a tree line instead of a parking lot.



  • Enhanced Sustainability Measures

    Possible solar exposure will be utilized on the roof plane to support renewable energy generation. The building will incorporate solar panels facing north as an integrated part of the architectural and environmental strategy.



  • Natural Daylight Strategy

    Skylights will be added throughout the main hallway to introduce natural light, improve spatial quality, and reduce reliance on artificial lighting.

    and experience of the shared environment.

Preliminary Design 2

Design Concept & Heuristic: For Preliminary Design 2, the guiding heuristic is metaphorical, inspired by the concept of a linear assembly line for workers. The design interprets this metaphor through a streamlined spatial organization, where the apartments are elevated above the parking area. Functionally, this arrangement allows the building mass to serve as a canopy—providing shade and protection for both the parking spaces and pedestrian walkways. Formally, the composition establishes a clear hierarchy of geometric volumes, employing a series of interrelated squares that reference Richard Meier’s disciplined use of geometry.

First Floor Plan

Second Floor Plan


3D Axonometric Renderings


Preliminary 3D Elevation Renderings


Front Elevation


Left Elevation


Right Elevation

Final Design 2


First Floor Plan

Second Floor Plan

Site Plan

ChatGPT Image Dec 20, 2025, 01_04_54 PM.png

2D Elevations

Front Elevation

design 4 - draft construction set_recover (1) (1)-Model_page-0001.jpg

Back Elevation

Left Elevation

Right Elevation

3D Elevations

elevation

Front Elevation

Left Elevation

Right Elevation

Sections

Building Section


Construction Wall Section

sec

Details

details 2_page-0001_edited.png

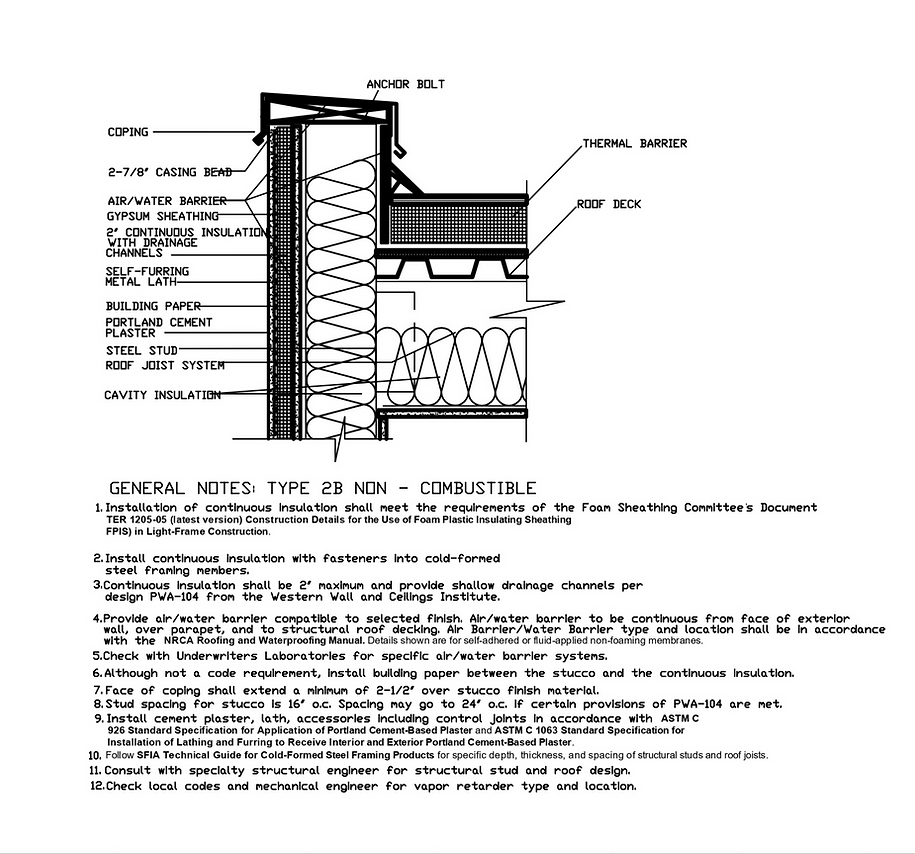

Wall and Roof Detail


Column Detail

Unit Sections

Duplex Unit

sec

Studio Unit

Duplex Unit

Duplex Unit

Unit Floor Plans

Single Unit


Duplex Unit


3D Axonometric Renderings

ChatGPT Image Dec 20, 2025, 05_10_23 PM.png
ChatGPT Image Dec 20, 2025, 05_50_19 PM.png

Interior Apartment Renders

Duplex Interior View


Single Unit Interior View


Cost Estimate

ICC Building Evaluation

Preliminary Costs

Screenshot 2025-12-10 173624 (1).png

Project Worksheet

Screenshot 2025-12-20 180242.png

Project Cost Projection

Screenshot 2025-12-20 180303.png
